IID-LK12 - IID-LK24

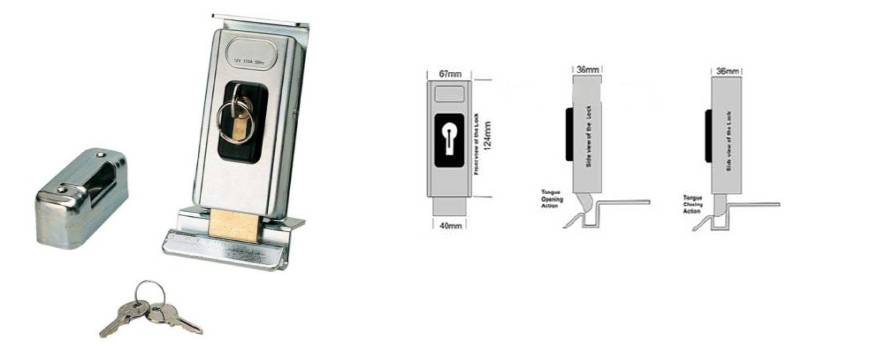

This electric mechanical lock is a fail-safe security device for automatic swing gates, which should be

connected into lock connection ports on control panel. When the closing gate touches the stopper on the

ground, the lock tongue will lock into the slot of stopper. If power is cut, the lock will remain in lock status.

Features:

* Fail-secure type: Power to open

* Lock Size: 67*40*36mm

* Voltage: 17Vdc(12Vac) unlocking coil

* Fitted with and an end of travel micro-switch (normally closed), the contacts of which open when the bolt is unlocked.

It can be connected to the closing end of stroke (FCC) connector in those facilities in which the gate is controlled by

way of ends of stroke.

* A cylinder extension kit is supplied for particularly thick gates.

* Working Current:4A

* Sensitivity: Sensitivity

* Door thickness:35 to 50mm

* Keys:3pcs brass keys

* Lock body:steel
